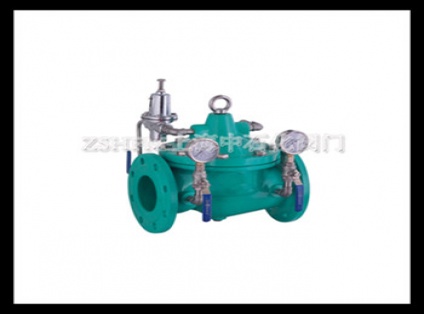

200x-16q ductile iron adjustable pressure reducing valve:
I. 200x-16q ductile iron adjustable pressure reducing valve product overview:
200x-16q pressure reducing valve is an intelligent valve which USES the energy of the medium itself to regulate and control the pipeline pressure. It is used in the domestic water supply, fire water supply and other industrial water supply systems.
Structural form:
200x-10q pressure reducing valve, 200x-16q pressure reducing valve by the main valve, guide valve, needle valve, ball valve, miniature filter and pressure gauge, pipe system and so on.
The valve is a medium to use its own energy to regulate the pressure of the pipeline, by adjusting the pressure relief guide valve, control the outlet pressure of the main valve, the outlet pressure does not change due to the change of the inlet pressure, is not subject to the change of the outlet water consumption and change the outlet pressure. Reliable sealing performance, easy installation, maintenance, debugging, inspection, long service life.
Ii. 200x-16q ductile iron adjustable pressure reducing valve features:
1. The valve body adopts full channel, streamlined design, with low fluid resistance and large flow;
2. The body and cover are coated with epoxy powder inside and outside, which can prevent the corrosion of the body and cover;
3, the use of foreign countries can be removed the seat of the advanced technology, the structure is clever, easy to repair and replace (no need to remove the whole valve);
4, in the pipeline can be any vertical or horizontal installation, its reliability unchanged;
5. Double protection of sealing gasket or sealing ring is adopted at the connection of valve body, valve cover and piston cylinder;
6. Piston cylinder adopts diversion hole to appropriately increase resistance, making piston movement more stable and flexible;
7, all stainless steel piston cylinder, the whole piston, butadiene rubber seal ring, complete combination greatly extend the service life.
Scope of use: the product can be used in production, living and fire water supply and drainage system.
Products conform to the standards: CJ/T 219, JB/T 10674.

No Information

Main performance parameters

model	Nominal pressure PN	Applicable temperature /°C	Applicable medium
200X-10Q	10	≤80	Clear water
200X-16Q	16	≤80	Clear water

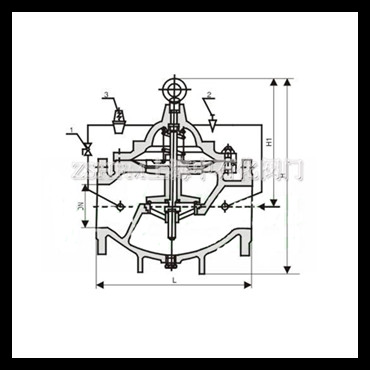

Main overall dimensions

                                                          （unit：mm）



No Information
