Home > Products > Ball valve > Pneumatic three way ball valveQ644F Q645F

Description Material Performance Product Size Specifications

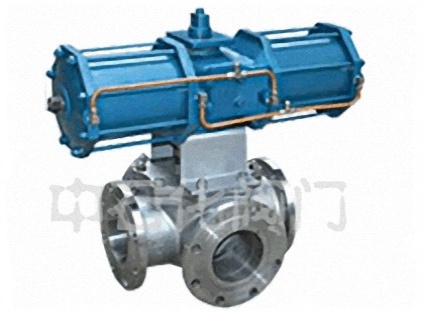

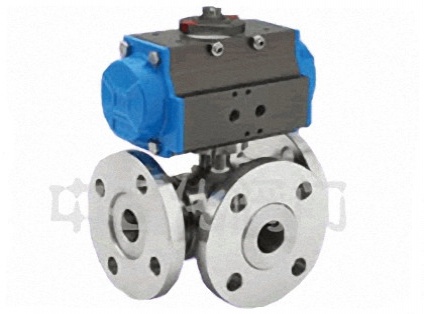

Pneumatic three ball valve is a kind of valve can be divided into L type and T type. L type three way ball valve for medium flow switching, can make each other perpendicular to the two channels (such as the flow chart L). Three way ball valve is generally used two valve seat structure, can also be based on user requirements of four valve seat structure. Four three seat sealing valve has beautiful appearance, compact and reasonable structure, which not only enables media flow switch, also can make the three channels connected with each other, but also to turn off any channel, connected to the other two channels, control of media in the pipeline or shunt flexible confluence.
Note: parameters are for reference only, or are not full. Valve can be used in accordance with the requirements of different pressure, material, caliber. Specific please contact or online advisory contact.

body material	WCB、304、316、316L
Valve plate material	WCB、304、316、316L
Valve seat liner	PTFE、PPL

Driving gas source	5-7barcompressed air
Pneumatic accessories	Limit switch, positioner, electromagnetic valve Filtering pressure reducing valve, hand wheel mechanism
Nominal diameter	DN15-250mm
Nominal pressure	1.6-6.4MPa
Applicable temperature	PTFE:-30~+180℃ PPL:-30~+250℃
Connection mode	Flange type
Valve body structure	Three pass T type, three pass L type
Applicable medium	Steam, water, gas, etc.

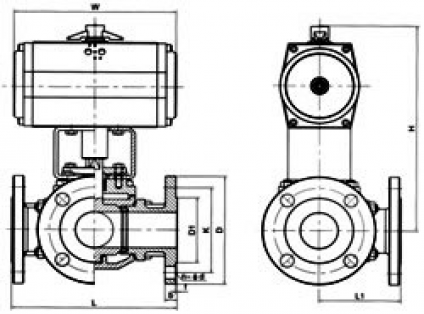

Q644/645F-16
Path DN		L	L1	D	K	D1	n-Φd	b	f	H	W
mm	in
25	1″	200	100	115	85	65	4-Φ14	16	2	193	140
32	1 1/4″	220	100	140	100	76	4-Φ18	18	2	212	164
40	1 1/2″	250	125	150	110	84	4-Φ18	18	2	230	164
50	2″	260	130	165	125	99	4-Φ18	20	3	268	190
65	2 1/2″	300	150	185	145	118	4-Φ18	20	3	293	210
80	3″	320	160	200	160	132	8-Φ18	20	3	325	247
100	4″	370	185	220	180	156	8-Φ18	22	3	380	276
125	5″	430	215	250	210	184	8-Φ18	22	3	468	348
150	6″	480	240	285	240	211	8-Φ23	24	3	510	378
200	8″	550	275	340	295	256	12-Φ23	24	3	655	432

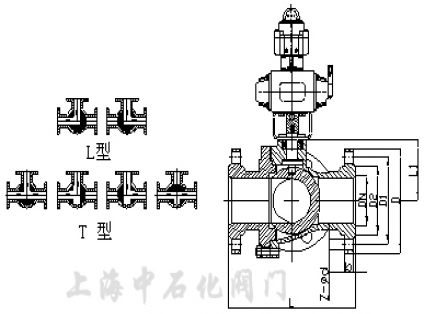

Pneumatic three way ball valve (regulating type / switch type) size and parameters:

1、In the table with a fraction, molecular JB/T74~90 Series 2 dimensions (equivalent to the original machine standard JB74~90~59 size), JB/T74~90 series.
1、GB9112~9131 (PN1.6, 2.5, 4.0Mpa) and HGJ44~76 size.
2、In the table with a fraction, molecular size of ANSIB16.5, GB9112~9131, SH3406 the size of the denominator.

Nominal pressure or pressure level	Nominal diameter		size（mm）
	mm	in	L	L1	D	D1	D2	b	z-Φd
PN1.6MPa	15		130	65	95	65	45	14	4-14
	20		150	75	105	75	55/58	14/16	4-14
	25		160	80	115	85	65/68	14/16	4-14
	32		180	90	135/140	100	78	16	4-18
	40		200	100	145/150	110	85/88	16	4-18
	50		230	115	160/165	125	100/102	16/18	4-18
	65		290	145	180/185	145	120/122	18	4-18
	80		310	155	195/200	160	135/138	20	4-18
	100		350	175	215/220	180	155/158	20	4-18
	125		400	200	245/250	210	185/188	22	4-18
	150		480	240	280/285	240	210/212	24/22	8-23/8-22
PN2.5MPa	15		130	65	95	65	45	16	4-14
	20		150	75	105	75	55/58	16	4-14
	25		160	80	115	85	65/68	16	4-14
	32		180	90	135/140	100	78	18	4-18
PN2.5MPa	40		200	100	145/150	110	85/88	18	4-18
	50		230	115	160/165	125	100/102	20	4-18
	65		290	145	180/185	145	120/122	22	8-18
	80		310	155	195/200	160	135/138	22/24	8-18
	100		350	175	230/235	190	160/162	24	8-23/8-22
	125		400	200	270	220	188	28/26	8-25/8-26
	150		480	240	300	250	218	30/28	8-25/8-26
PN4.0MPa	15		130	65	95	65	45	16	4-14
	20		150	75	105	75	55/58	16	4-14
	25		160	80	115	85	65/68	16	4-14
	32		180	90	135/140	100	78	18	4-18
	40		200	100	145/150	110	85/88	18	4-18
	50		230	115	160/165	125	100/102	20	4-18
	65		290	145	180/185	145	120/122	22	8-18
	80		310	155	195/200	160	135/138	22	8-18
	100		350	175	230/235	190	160/162	24	8-23/8-22
	125		400	200	270	220	188	28	8-25/8-26
	150		480	240	300	250	218	30	8-25/8-26
Class150LB	15	1/2	130	65	89	60.5	35	-	4-15
	20	3/4	150	75	98	70	43	-	4-15
	25	1	160	80	108/110	79.5	51	11.5	4-15/4-16
	32	11/4	180	90	117/120	89	64	13.0	4-15/4-16
	40	11/2	200	100	127/130	98.5	73	14.5	4-15/4-16
	50	2	230	115	152/150	120.5	92	16.0	4-19/4-20
	65	21/2	290	145	178/180	139.5	105	17.5	4-19/4-20
	80	3	310	155	190	152.5	127	19.5	4-19/4-20
	100	4	350	175	229/230	190.5	157	24.0	8-19/4-20
	125	5	400	200	254/255	216.0	186	24.0	8-22
	150	6	480	240	279/280	241.5	216	25.5	8-22
JIS10K	15		130	65	95	70	52	12	4-15
	20		150	75	100	75	58	14	4-15
	25		160	80	125	90	70	14	4-19
	32		180	90	135	100	80	16	4-19
	40		200	100	140	105	85	16	4-19
	50		230	115	155	120	100	16	4-19
	65		290	145	175	140	120	18	4-19
	80		310	155	185	150	130	18	8-19
	100		350	175	210	175	155	18	8-19
	125		400	200	250	210	185	20	8-23
	150		480	240	280	240	215	22	8-23

In the fire protection design
5211 - ISO design platform for the installation of automatic switch device
Antistatic device - between the stem and the body
The explosion-proof device - stem design
Application standard:
- Design and manufacture: GB/T12237, ANSI B16.34, API 608
The length of the structure: GB/T12221, ASME - B16.10, JIS B2002
Flange size: GB/T9113, ASME - B16.5, JIS B2212/JIS B2214
- Inspection and test: GB/T13927
- Fire Test: API 607 4th 1993
Wall thickness: ASME - B16.34
Note: L (T) - three-way valve by the pneumatic actuator and three valve components, is a kind of rotary type cutting off regulating valves, has closed tight, compact structure, light weight, convenient maintenance etc.. Widely used in the automation control of gas, liquid, steam, oil and other corrosive media.
