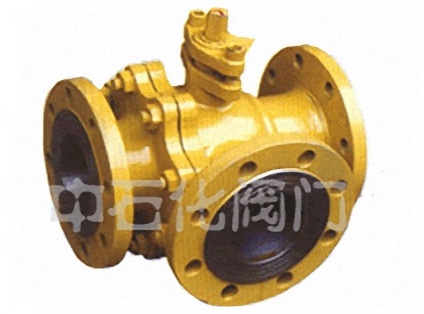

Three way ball valve has T type and L type. T type can make the three orthogonal channels and cut off the third channels Unicom, from the diversion, the confluence of the role. Two pipeline L three ball type valve can only be connected mutually orthogonal, communicating with each other while maintaining the third pipeline, only as a distribution function.
Features: one or two valve seat sealing three ball valve with compact structure, beautiful appearance, good sealing performance. Can also realize the switching of the pipeline intermediary flow. Can also make the resistance of the two channels perpendicular to the connection or close. Two, the four seat sealing ball valve three beautiful shape, compact and reasonable structure, which not only enables media flow switch, also can make the three channels connected with each other, but also to turn off any channel to another channel connectivity, control of media in the pipeline or shunt flexible confluence.
Note: parameters are for reference only, or are not full. Valve can be used in accordance with the requirements of different pressure, material, caliber. Specific please contact or online advisory contact.

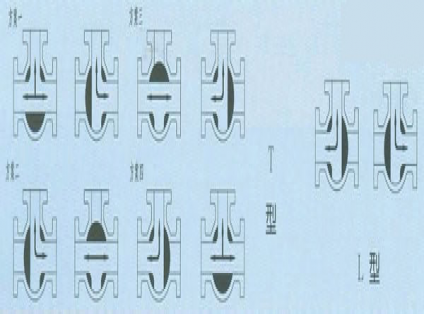

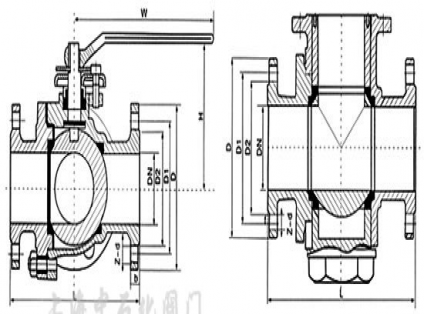

Three way ball valve is generally used two valve seat structure (Figure three), as shown in the flow chart A two conditions. Choose two sides seat L type structure (i.e. Q44 type). And the flow of B in the two conditions can choose two seat T type structure (Q45 type). Flow chart B II and two conditions must be used to select the four valve T type structure (ie, Q45 type). The rest of the work conditions can also be used to four seat structure, but in order to indicate the structure of the valve seat. For other requirements, please refer to the sample "valve model preparation method" to fill the corresponding requirements code.
