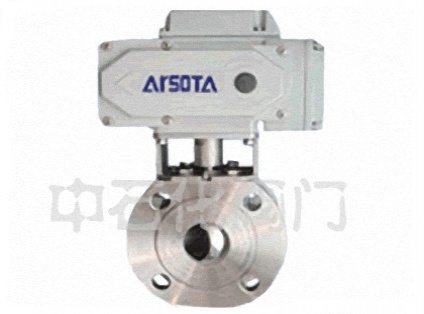

The valve is composed of DCL series of fine and small electric actuator and ultra short ball valve, and general electric ball valve has a compact structure, small size, light weight, the valve seat and face flange distance near, less material retention. Superior sealing performance and other characteristics. Usually applied to the strict requirements of the occasions, widely used in chemical, petroleum, pharmaceutical, light industry and other industries of automatic control. The V type channel sphere structure and the electronic electric actuator can realize the regulation of the flow. Q71 super thin ball valve is a part, with a short structure, light weight, easy installation, saving materials, and other significant advantages.
|
Serial number
|
Part name
|
Texture of material
|
|
1
|
valve body
|
Stainless steelCF8M/CF8
|
carbon steelWCB
|
|
2
|
The Ball
|
Stainless steel316/304
|
Stainless steelSS304
|
|
3
|
A seal
|
Teflon PTFE
|
Teflon PTFE
|
|
4
|
The stem
|
Stainless steel316/304
|
Stainless steelSS304
|
|
5
|
filler
|
Teflon PTFE
|
Teflon PTFE
|
|
6
|
Positioning lock
|
Stainless steelSS304
|
Stainless steelSS304
|
|
7
|
Handle
|
Stainless steelSS304
|
Stainless steelSS304
|
|
8
|
Stem nut
|
Stainless steelSS304
|
Stainless steelSS304
|
|
9
|
Packing press sleeve
|
Stainless steelSS304
|
Stainless steelSS304
|
|
10
|
Handle sleeve
|
Plastic
|
Plastic
|
|
11
|
Sealing cap
|
Stainless steel316/304
|
Stainless steelSS304
|
|
12
|
Washer
|
Teflon PTFE
|
Teflon PTFE
|
Q71 thin flange ball valve is suitable for Class150, PN1.0~2.5MPa, the working temperature of 29~180 DEG C (seal for PTFE) or 29~300 (c ring as Polyparaphenylene) of various pipelines, used to cut off or connect the line of medium, use different materials, can be respectively applied to water, steam, oil, nitric acid and acetic acid, oxidizing medium, urea and other media. Applicable medium: water, gas, oil, natural gas and acid and alkali corrosive medium. Temperature: -20~150~300 C drive mode: manual, pneumatic, electric, etc.. Nominal pressure: 1.6~2.5MPa
|

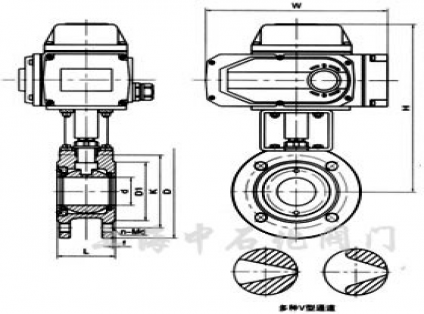

Q971F-16
|
|
Path DN
|
d
|
L
|
D
|
K
|
D1
|
n-Md
|
f
|
H
|
W
|
|
mm
|
in
|
|
|
|
|
|
|
|
|
|
|
15
|
1/2″
|
14
|
35
|
90
|
65
|
46
|
4-M12
|
2
|
190
|
196
|
|
20
|
3/4″
|
19
|
38
|
100
|
75
|
56
|
4-M12
|
2
|
195
|
196
|
|
25
|
1″
|
24
|
42
|
110
|
85
|
65
|
4-M12
|
2
|
210
|
196
|
|
32
|
1 1/4″
|
29
|
50
|
130
|
100
|
76
|
4-M16
|
3
|
220
|
196
|
|
40
|
1 1/2″
|
38
|
60
|
145
|
110
|
84
|
4-M16
|
3
|
230
|
196
|
|
50
|
2″
|
48
|
70
|
160
|
125
|
99
|
4-M16
|
3
|
265
|
196
|
|
65
|
2 1/2″
|
64
|
95
|
180
|
145
|
118
|
4-M16
|
3
|
300
|
255
|
|
80
|
3″
|
76
|
118
|
195
|
160
|
132
|
8-M16
|
3
|
325
|
255
|
|
100
|
4″
|
95
|
140
|
215
|
180
|
156
|
8-M16
|
3
|
350
|
255
|
|
125
|
5″
|
118
|
195
|
245
|
210
|
184
|
8-M16
|
3
|
375
|
255
|
|
150
|
6″
|
150
|
280
|
280
|
240
|
211
|
8-M20
|
3
|
420
|
255
|
|
200
|
8″
|
200
|
350
|
335
|
295
|
266
|
12-M20
|
3
|
460
|
255
|
Structure length: Q/OLF002-88
Flange standard: JB79 can also press ANSI, B16.5 JIS, B2212 GB9113
