Product [pneumatic butterfly valve (regulating valve / switch type), (to clamp type, flange type)：

Product model：SMD type

Product Name: pneumatic butterfly valve (regulating valve / switch type), (for clamp type, flange type)

Product features: the company produces pneumatic butterfly valve, is the introduction of foreign advanced technology on the basis of special design, carefully manufactured products. Butterfly valve with travel limit switch, solenoid valve, triple pieces and 0.4-0.7MPa gas source can switch operation, and send out two pairs of passive contact signal indicating valve switch. The use of intelligent control and positioning, and supporting domestic electric valve positioner, input 4-20mADC signal and 0.4-0.7MPa source can realize intelligent control, realize the adjustment of the parameters of pressure, flow, temperature, liquid level etc.. The utility model is driven by compressed air, and the valve rod drives the valve core to rotate 90 DEG C in the valve body, so that the fully open fully closed action can be realized. The product is divided into metal seal and soft seal according to its sealing performance. The utility model has the advantages of compact structure, small volume, reliable operation, good tightness, easy maintenance, convenient installation, strong adaptability, etc.. Can be widely used in petroleum, chemical, light industry, pharmaceutical, paper, automobile and other industrial automatic control system for remote centralized control or local control.

二、valve body：

Nominal diameter：15~1000mm Nominal pressure：PN1.6MPa
Connection type: flange type pressJB78-59 JB79-59
Material Science：WCB，HT200 ZG25I ZG1Cr18Ni9Ti，
ZG0Cr18Ni12Mo2Ti，CF8，CF8MPTFE lining，
Temperature range: room temperature-20℃~+200℃
Medium temperature+200℃～＋450℃
Packing: V type PTFE packing, containing PTFE packing，
Asbestos braided filler, flexible graphite。

Valve assembly：

Spool type: valve plate
Flow characteristics: linear or equal percentage holding
Material Science：1 Cr18Ni9Ti 0Cr18Ni12Mo2Ti
Seat material: PTFE (PTFE), rubber, metal seat
Stem material: stainless steel, lining PTFE, adjustable ratio：100：1

四、Enforcement agencies：

The cylinder forms: single cylinder or double cylinder cylinder working pressure: 0.4~0.7MPa cylinder double acting type switch time: 1~5 seconds

五、Cylinder air consumption: 1~131L solenoid valve power supply: 220VAC, 24VDC

Nominal diameter DN	50	65	80	100	15	10	200	250	300	350	400	450	500	600	700	800	900	1000
discharge coefficient（Kv）	110	180	232	368	55	75	1240	2025	2712	3875	5038	6330	7755	11886	15375	19380	25695	31365
Range of motion	0－90°
Allowable differential pressureΔP	Less than nominal pressure（1.6MPa）
Leakage rate	Press GB/T4213-92，kVThe value of the10-4
Basic error	±2.5% Belt positioner
Return difference	2.5% Belt positioner
dead zone	1% Belt positioner
ambient temperature	-20℃~+90℃

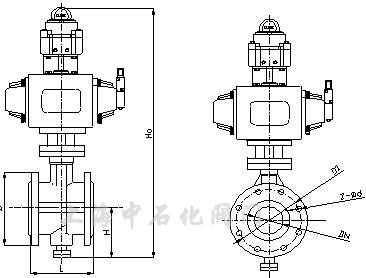

七、SMD671FPneumatic clamp type butterfly valve6.1SMD671HF－1016Series size：

Nominal diameter DN	Outline dimension
	L	H2	H1	1.0MPa			1.6MPa
	L	H2	H1	D	D1	Z-Φd	D	D1	Z-Φd
50	43	430	112	165	125	4－18	165	125	4－18
65	46	450	115	185	145	4－18	185	145	4－18
80	49	468	120	200	160	8－18	200	160	8－18
100	56	554	138	220	180	8－18	220	180	8－18
125	64	600	164	250	210	8－18	250	210	8－18
150	70	675	175	285	240	8－22	285	240	8－22
200	71	720	205	340	295	8－22	340	295	12－22
250	76	797	240	395	350	12－22	405	355	12－26
300	83	920	290	445	400	12－22	460	410	12－26
350	92	982	320	505	460	16－22	520	470	16－26
400	102	1100	350	565	515	16－26	580	525	16－30
450	114	1170	380	615	565	20－26	715	650	20－33
500	127	1230	410	670	620	20－26	715	650	20－33
600	154	1410	470	780	725	20－30	840	770	20－36
700	165	1610	550	895	840	24－30	910	840	24－36
800	190	1790	640	1015	950	24－33	1025	950	24－39
900	203	1944	710	1115	1050	28－33	1125	1050	28－39
1000	216	2070	770	1230	1160	28－36	1255	1170	28－42

八、SMD671FPneumatic clamp type butterfly valve6.2SMD671－2540Series size：

Nominal diameter DN	Outline dimension
	L	H2	H1	2.5MPa			4.0MPa
	L	H2	H1	D	D1	Z-Φd	D	D1	Z-Φd
50	43	430	112	165	125	4－18	165	125	4－18
65	46	450	115	185	145	8－18	185	145	8－18
80	49	468	120	200	160	8－18	200	160	8－18
100	56	554	138	235	190	8－22	235	190	8－22
125	64	600	164	270	220	8－26	270	220	8－26
150	70	665	175	300	250	8－26	300	250	8－26
200	71	720	205	360	310	12－26	375	320	12－30
250	76	797	240	425	370	12－30	450	385	12－33
300	83	920	290	485	430	12－30	515	450	16－33
350	92	982	320	555	490	16－33	580	510	16－36
400	102	1100	350	620	550	16－36	660	585	16－39
450	114	1170	380	670	600	20－36	685	610	20－39
500	127	1230	410	730	660	20－36	755	670	20－42
600	154	1410	470	845	770	20－39	-	-	-
700	165	1610	550	960	875	24－42	-	-	-
800	190	1790	640	1085	990	24－48	-	-	-
900	203	1944	710	1185	1090	28－48	-	-	-
1000	216	2070	770	1320	1210	28－56	-	-	-

九、SMD671FPneumatic clamp type butterfly valve6.3SMD641H－10/F－16Series size：

Nominal diameter DN	Outline dimension
	L	Ha	H	1.0MPa			41.6MPa
	L	Ha	H	D	D1	Z-Φd	D	D1	Z-Φd
50	108	430	112	165	125	4－18	165	125	4－18
65	112	450	115	185	145	4－18	185	145	4－18
80	114	468	120	200	160	8－18	200	160	8－18
100	127	554	138	220	180	8－18	220	180	8－18
125	140	600	164	250	210	8－18	250	210	8－18
150	140	665	175	285	240	8－22	285	240	8－22
200	152	720	205	340	295	8－22	340	295	12－26
250	165	797	240	395	350	12－22	405	355	12－26
300	178	920	290	445	400	12－22	460	410	12－26
350	190	982	320	505	460	16－22	520	470	16－26
400	216	1100	350	565	515	16－26	580	525	16－30
450	222	1170	380	615	565	20－26	715	650	20－33
500	229	1230	410	670	620	20－26	715	650	20－33
600	267	1410	470	780	725	20－30	840	770	20－36
700	292	11610	550	895	840	24－30	910	840	24－36
800	318	1790	640	1015	950	24－33	1025	950	24－39
900	330	1944	710	1115	1050	28－33	1125	1050	28－39
1000	410	2074	770	1230	1160	28－36	1255	1170	28－42

七、SMD671FPneumatic clamp type butterfly valve6.4SMD641H－25/H－40Series size：

Nominal diameter DN	Outline dimension
	L	Ha	H1	2.5MPa			4.0MPa
	L	Ha	H1	D	D1	Z-Φd	D	D1	Z-Φd
50	108	430	112	165	125	4－18	165	125	4－18
65	112	450	115	185	145	8－18	185	145	8－18
80	114	468	120	200	160	8－18	200	160	8－18
100	127	554	138	235	190	8－22	235	190	8－22
125	140	600	164	270	220	8－26	270	220	8－26
150	140	665	175	300	250	8－26	300	250	8－26
200	152	720	205	360	310	12－26	375	320	12－30
250	165	797	240	425	370	12－30	450	385	12－33
300	178	920	290	485	430	12－30	515	450	16－33
350	190	982	320	555	490	16－33	580	510	16－36
400	216	1100	350	620	550	16－36	660	585	16－39
450	222	1170	380	670	600	20－36	685	610	20－39
500	229	1230	410	730	660	20－36	755	670	20－42
600	267	1410	470	845	770	20－39	-	-	-
700	292	1610	550	960	875	24－42	-	-	-
800	318	1790	640	1085	990	24－48	-	-	-
900	330	1944	710	1185	1090	28－48	-	-	-
1000	410	2070	770	1320	1210	28－56	-	-	-

D	SM	6	71	X	10	C	G
Valve code	Company logo	Enforcement agencies：	Connection form：	Sealing surface material：	Nominal pressure：	body material：	Temperature type：
Q：Ball valve	-	6：Express air	41：Express flange	F：PTFE, PTFE	10：Express1.0MPa	C：Carbon steel	G：Medium temperature type
D：Express butterfly valve	-	9：Express Electric	11：Said	H；Metal seal	16：Express1.6MPa	P：Stainless steel cast	Room temperature omitted
-	-	-	71：Express pair	X：Rubber seal	-	F46：Said valve body lining tetrafluoride	-
