Home > Products > Relief valve > Closed with a wrench safety valveA44Y

Description Material Performance Product Size Specifications

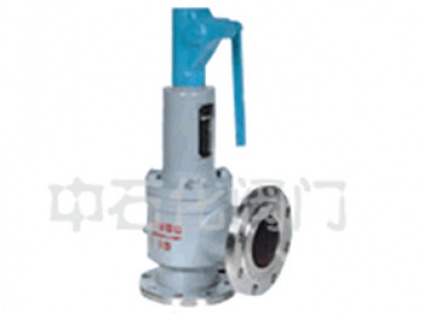

With a safety valve for steam working temperature are less than 350 wrench spring, the equipment and piping of air medium. A44Y with a wrench spring full open safety valve suitable for working temperature are less than 300 of the air, oil and other media of the equipment or pipeline, as the overpressure protection device. Connecting flange standard PN<6.4MPa according to JB/T-94 series 1. PN = 6.4MPa according to JB/T-94 2 standard.
Note: parameters are for reference only, or are not full. Valve can be used in accordance with the requirements of different pressure, material, diameter, drive, etc.. Specific please contact or online advisory contact.

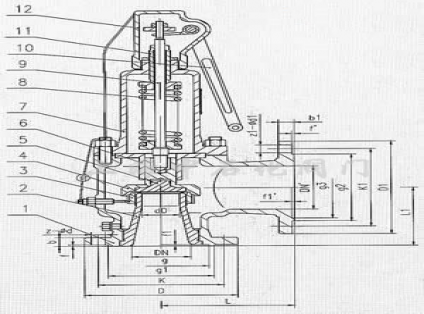

NO.	Part name	A48Y-C A44Y-C Material Science	A44Y-PMaterial Science	A44Y-RMaterial Science
1	valve body	WCB	ZG1Cr18Ni9Ti	CF8M
2	valve seat	2Cr13	1Cr18Ni9Ti	316
3	Adjusting ring	ZG2Cr13	ZG1Cr18Ni9Ti	0Cr18Ni12Mo2Ti
4	Back kick	ZG2Cr13	ZG1Cr18Ni9Ti	316
5	Valve	2Cr13	1Cr18Ni9Ti	316
6	Guide sleeve	2Cr13	1Cr18Ni9Ti	0Cr18Ni12Mo2Ti
7	Valve cover	ZG230-450	ZG230-450	ZG230-450
8	Spring	50CrVA	50CrVA包覆氟塑料	50CrVA包覆氟塑料
9	The stem	2Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
10	Wrench	ZG200-400	ZG200-400	ZG200-400
11	Adjusting screw	45	2Cr13	2Cr13
12	Protective cover	ZG200-400	ZG200-400	316
	Sealing surface material	Surfacing Co based cemented carbide

1. The full-opening safety valve with wrench spring is characterized by simple structure, good sealing performance, accurate opening pressure, large discharge capacity, small return seat pressure difference and convenient adjustment.
2, nozzle type valve seat: the valve seat is the position of the wall nozzle type valve seat, the steam flow through the valve seat exit reaches the speed of sound, the discharge coefficient is large, the valve seat sealing surface surfacing cobalt-chromium tungsten carbide, wear resistant erosion, long life.
3, thermoelastic disc: the disc is designed for thermoelastic structure, using its small deformation in the medium pressure, improve the sealing ability, to overcome the relief valve in the medium pressure near the setting pressure of the leakage phenomenon. Disc sealing surface with advanced laser quenching technology, improve the hardness, wear resistance, impact resistance.
4, adjust the nut: adjust the nut, adjust the spring compression amount, so that the valve can be very convenient, very quickly to obtain accurate setting pressure.
5, back pressure adjustment sleeve: to adjust the disc back pressure of the auxiliary mechanism, through the back pressure adjustment sleeve adjustment, can get the appropriate back seat pressure difference. When upregulation, make valve back pressure lower. Lower the back pressure of the valve to increase.

Model	nominal Path	do	D	K	g	g1	b	f	f1	Z-ød	DN'	D1	K1	g3	g2	b1	f'	f1'	Z1-ød1	L	L1	≈H
A48Y-16C A44Y-16C A44Y-16P A44Y-16R	20	15	105	75	-	55	16	2	-	4-14	25	115	85	-	65	16	2	-	4-14	110	95	411
	25	16	115	85	-	65	16	2	-	4-14	32	140	100	-	78	18	2	-	4-18	110	95	411
	32	20	140	100	-	78	18	2	-	4-18	40	150	110	-	85	18	3	-	4-18	115	100	411
	40	25	150	110	-	85	18	3	-	4-18	50	165	125	-	100	20	3	-	4-18	120	110	472
	50	32	165	125	-	100	20	3	-	4-18	65	185	145	-	120	20	3	-	4-18	135	120	532
	65	40	185	145	-	120	20	3	-	4-18	80	200	160	-	135	20	3	-	8-18	160	140	556
	80	50	200	160	-	135	20	3	-	8-18	100	220	180	-	155	22	3	-	8-18	170	135	561
	100	65	220	180	-	155	20	3	-	8-18	125	250	210	-	185	22	3	-	8-18	195	175	667
	125	80	250	210	-	185	22	3	-	8-18	150	285	240	-	210	24	3	-	8-23	210	190	857
	150	100	285	240	-	210	24	3	-	8-23	175	310	270	-	240	26	3	-	8-23	255	230	915
	200	125	340	295	-	265	26	3	-	12-23	250	405	355	-	320	30	3	-	12-26	300	260	1073
	250	150	405	355	-	320	30	3	-	12-26	300	460	410	-	375	30	4	-	12-26	350	320	1307
	300	220	460	410	-	375	30	4	-	12-26	400	580	525	-	485	36	4	-	16-30	370	350	1233
	350	250	520	470	-	435	34	4	-	16-26	500	715	650	-	608	44	4	-	20-34	500	450	1711
	400	280	580	525	-	485	36	4	-	16-30	500	715	650	-	608	44	4	-	20-34	500	450	1780
A48Y-25 A44Y-25 A44Y-25P A44Y-25R	20	15	105	75	-	55	16	2	-	4-14	25	115	85	-	65	16	2	-	4-14	110	95	411
	25	16	115	85	-	65	16	2	-	4-14	32	140	100	-	78	18	2	-	4-18	110	95	411
	32	20	140	100	-	78	18	2	-	4-18	40	150	110	-	85	18	3	-	4-18	115	100	411
	40	25	150	110	-	85	18	3	-	4-18	50	165	125	-	100	20	3	-	4-18	120	110	472
	50	32	165	125	-	100	20	3	-	4-18	65	185	145	-	120	20	3	-	4-18	135	120	532
	65	40	185	145	-	120	22	3	-	8-18	80	200	160	-	135	20	3	-	8-18	160	140	556
	80	50	200	160	-	135	22	3	-	8-18	100	220	180	-	155	22	3	-	8-18	170	135	561
	100	65	230	190	-	160	24	3	-	8-23	125	250	210	-	185	22	3	-	8-18	195	175	667
	125	80	270	220	-	188	28	3	-	8-26	150	285	240	-	210	24	3	-	8-23	210	190	857
	150	100	300	250	-	218	30	3	-	8-26	175	310	270	-	240	26	3	-	8-23	255	230	915
	200	125	360	310	-	278	34	3	-	12-26	250	405	355	-	320	30	3	-	12-26	300	260	1073
	250	150	425	370	-	332	36	3	-	12-30	300	460	410	-	375	30	4	-	12-26	350	320	1307
	300	220	485	430	-	390	40	4	-	16-30	400	580	525	-	485	36	4	-	16-30	370	350	1233
	350	250	555	490	-	448	44	4	-	16-34	500	715	650	-	608	44	4	-	20-34	500	450	1711
	400	280	620	550	-	505	48	4	-	16-36	500	715	650	-	608	44	4	-	20-34	500	450	1780
A48Y-40 A44Y-40 A44Y-40P A44Y-40R	20	15	105	75	51	55	16	2	4	4-14	25	115	85	-	65	16	2	-	4-14	110	95	411
	25	16	115	85	58	65	16	2	4	4-14	32	140	100	-	78	18	2	-	4-18	110	95	411
	32	20	140	100	66	78	18	2	4	4-18	40	150	110	-	85	18	3	-	4-18	115	100	411
	40	25	150	110	76	85	18	3	4	4-18	50	165	125	-	100	20	3	-	4-18	120	110	472
	50	32	165	125	88	100	20	3	4	4-18	65	185	145	-	120	20	3	-	4-18	135	120	532
	65	40	185	145	110	120	22	3	4	8-18	80	200	160	-	135	20	3	-	8-18	160	140	556
	80	50	200	160	121	135	22	3	4	8-18	100	220	180	-	155	22	3	-	8-18	170	135	561
	100	65	235	190	150	160	24	3	4.5	8-23	125	250	210	-	185	22	3	-	8-18	195	175	697
	125	80	270	220	176	188	28	3	4.5	8-26	150	285	240	-	210	24	3	-	8-23	210	190	857
	150	100	300	250	204	218	30	3	4.5	8-26	175	310	270	-	240	26	3	-	8-23	255	230	915
	200	125	375	320	260	282	38	3	4.5	12-30	250	405	355	-	320	30	3	-	12-26	300	260	1073
	250	150	450	385	313	345	42	3	4.5	12-34	300	460	410	-	375	30	4	-	12-26	350	320	1307
	300	220	515	450	364	408	46	4	4.5	16-34	400	580	525	-	485	36	4	-	16-30	370	350	1233
	350	250	580	510	422	465	52	4	5	16-36	500	715	650	-	608	44	4	-	20-34	500	450	1711
	400	280	660	585	474	535	58	4	5	16-41	500	715	650	-	608	44	4	-	20-34	500	450	1711
A48Y-64 A44Y-64 A44Y-64P A44Y-64R	20	10	125	90	51	68	22	2	4	4-18	25	115	85	58	65	16	2	4	4-14	96	85	297
	25	16	140	100	58	78	22	2	4	4-18	32	140	100	66	78	18	2	4	4-18	110	100	310
	32	20	155	110	66	82	24	2	4	4-23	40	150	110	76	85	18	3	4	4-18	130	110	322
	40	25	170	125	76	95	24	3	4	4-23	50	165	125	88	100	20	3	4	4-18	135	120	352
	50	32	180	135	88	105	26	3	4	4-23	65	185	145	110	120	22	3	4	8-18	155	135	425
	65	40	205	160	110	130	28	3	4	8-23	80	200	160	121	135	22	3	4	8-18	175	160	570
	80	50	215	170	121	140	30	3	4	8-23	100	235	190	150	160	24	3	4.5	8-23	175	160	560
	100	65	250	200	150	168	32	3	4.5	8-26	125	270	220	176	188	28	3	4.5	8-25	195	195	690
	150	100	345	280	204	240	38	3	4.5	8-34	200	375	320	260	282	38	3	4.5	12-30	280	265	935
A48Y-100 A44Y-100 A44Y-100P A44Y-100R	20	10	125	90	51	68	22	2	4	4-18	25	115	85	58	65	16	3	4	4-14	96	85	297
	25	16	140	100	58	78	24	2	4	4-18	32	140	100	66	78	18	2	4	4-18	110	100	310
	32	20	155	110	66	82	24	2	4	4-23	40	150	110	76	85	18	2	4	4-18	130	110	322
	40	25	170	125	76	95	26	3	4	4-23	50	165	125	88	100	20	3	4	4-18	135	120	352
	50	32	195	145	88	112	28	3	4	4-26	65	185	145	110	120	22	3	4	8-18	155	135	425
	65	32	220	170	110	138	32	3	4	8-26	80	200	160	121	135	22	3	4	8-18	175	160	570
	80	40	230	180	121	148	34	3	4	8-26	100	235	190	150	160	24	3	4.5	8-23	175	160	560
	100	50	265	210	150	172	38	3	4.5	8-30	125	270	220	176	188	28	3	4.5	8-25	195	195	690
	150	80	355	290	204	250	46	3	4.5	12-34	200	375	320	260	282	38	3	4.5	12-30	280	265	935

1, the safety valve must be installed vertically, and the best installed directly in the container or pipe joints. Joint diameter should not be less than the safety valve inlet diameter.
2, the export of safety valve must be fitted with appropriate expansion joints, in order to prevent the thermal expansion of the exhaust pipe to the safety valve should not be brought about by the thermal stress. Inner diameter of the discharge pipe should be larger than the outlet diameter of the valve, the length is as short as possible to avoid turning. The discharge tube and the expansion joint shall not be on the safety valve and shall be fixed to the building. The center line of the discharge tube and the center line of the valve body is as short as possible. For each safety valve should be installed separately discharge tube.
3, muffler outlet should have enough area to prevent the impact of back pressure on the valve discharge capacity.
