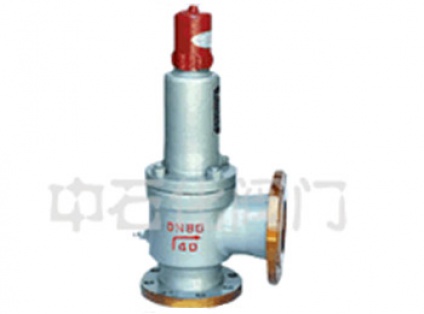

A42F safety valve installed in the pipeline and storage tank, tank protection, medium pressure in the equipment abnormal elevation to the specified value. Automatic valve opening, and then the whole amount of emissions, play a role in protecting the safety of equipment. For most of the fixed spherical tank. The A42F-16C~40 type is suitable for the water, air, liquefied petroleum gas and the similar non corrosive medium equipment and the pipeline of the working temperature of -40~+80. AH42F type safety valve for liquefied petroleum gas tank pump produced by liquid phase liquid return pipe, when the equipment and pipeline internal pressure exceeds the allowable value, the valve automatically opens, then the whole amount of emissions, when the pressure is reduced to the specified value, the valve automatically closes to ensure the safe operation of equipment.
Note: parameters are for reference only, or are not full. Valve can be used in accordance with the requirements of different pressure,
Valve body, valve cover
Valve seat, disc, valve stem
Spring
Sealing surface
WCB
Chrome stainless steel
Chrome vanadium steel
Cemented carbide
Nominal pressure
Shell test
Seal test
Opening pressure
Applicable medium
Suitable temperature
1.6
2.4
0.9PK
User determination
Liquefied gas, natural gas
Such as non corrosive medium
-40~ +300℃
2.5
3.75
4.0
4.4
Nominal diameter
DN(mm)

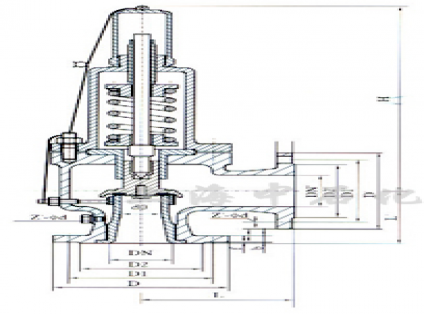

A42F Y- 16C PType main connection dimensions and dimensions（mm）
