Home > Products > Plunger valve > Metal sealing plunger valve

Description Material Performance Product Size Specifications

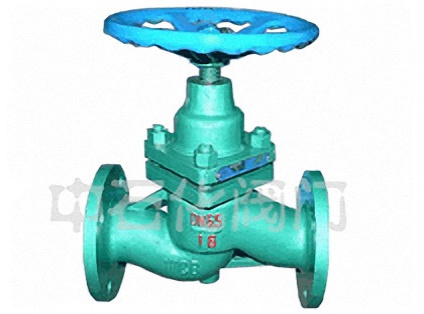

Plunger valve is composed of valve body, valve cover, valve stem, plunger, guide, seal ring, hand wheel and other parts. When the hand wheel rotation, through the stem to drive the plunger in the guide sleeve and the piston reciprocating motion, the end of the oblique cone surface and the valve seat surface to complete the valve opening and closing function.
In the valve plunger and the seal ring used between the interference fit, by adjusting the flange bolt preload, the lateral force and the body sealing ring generated by the compression of the cylindrical hole in Mianzhu sealing, to ensure the valve seal. Put an end to the internal leakage.
Because the sealing ring is made of a new type of high resilience and high wear resistance, a new type of sealing material is used, so the seal is reliable and durable, thereby increasing the service life of the valve.
The valve combined with the advantages of no leakage of the valve and the valve opening and closing fast characteristics, to become a novel structure, a wide range of new products. Its advantages far better than the ordinary cut-off valve.

No Information

Nominal pressure (PN): 1.6Mpa
Low pressure seal test pressure: 0.6Mpa
Strength test pressure (PT): 2.4Mpa
Applicable medium: steam, oil, water
UJ41H (Y) -25 performance specification:
Nominal pressure (PN): 2.5-4Mpa
Low pressure seal test pressure: 0.6Mpa
Strength test pressure (PT): 3.75-6Mpa
Applicable medium: steam, oil, water

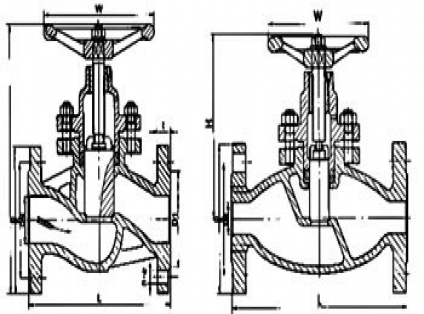

DN(mm) size（mm）	UJ41H-16C、Y、P、R
DN(mm) size（mm）	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
L	130	150	160	180	200	230	290	310	350	400	480	495	622	698	787	914
H	170	190	210	250	270	300	340	380	420	450	540	640	740	850	970	1100
W	100	100	120	140	160	180	200	240	270	310	340	400	520	640	760	900
D	95	105	115	135	145	160	180	195	215	245	280	335	405	460	520	580
K	65	75	85	100	110	125	145	160	180	210	240	295	355	410	470	525
D1	45	55	65	78	85	100	120	135	155	185	210	265	320	375	435	485
t	14	14	14	16	16	16	18	20	20	22	24	26	30	30	34	36
n-φ	4-14	4-14	4-18	4-18	4-18	4-18	4-18	8-18	8-18	8-18	8-23	12-23	12-25	12-25	16-25	16-30
weight（KG）	3．5	4．5	5．5	8	11．5	15	21	30	42	55	90	142	210	290	500	-

DN(mm) size（mm）	UJ41H（Y）-25C、P、R
DN(mm) size（mm）	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
L	130	150	160	180	200	230	290	310	350	400	480	495	622	698	787	914
H	170	190	200	230	260	280	300	370	400	420	510	590	710	830	950	1080
W	100	100	120	140	160	180	200	240	270	310	340	400	520	540	780	900
D	95	105	115	135	145	160	180	195	230	270	200	375	445	510	570	655
K	65	75	85	100	110	125	145	160	190	220	250	320	385	450	510	585
D1	39	50	57	65	75	87	109	120	148	175	203	259	312	363	421	473
t	16	16	16	18	18	20	22	22	24	22	30	38	42	46	52	58
n-φ	4-14	4-14	4-18	4-18	4-18	4-18	4-18	8-18	8-23	8-25	8-25	12-30	12-34	16-34	16-34	16-41

DN(mm) size（mm）	UJ41H-40C、Y、P、R
DN(mm) size（mm）	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
L	130	150	160	180	200	230	290	310	350	400	480	533	622	711	838	914
H	170	190	210	250	270	300	340	380	420	460	540	640	740	850	980	1100
W	100	100	120	140	160	180	200	240	280	310	340	400	520	640	760	900
D	95	105	115	135	145	160	180	195	230	270	300	360	425	485	550	610
K	65	75	85	100	110	125	145	160	190	220	250	310	370	430	490	550
D1	45	55	65	78	85	100	120	135	160	188	218	278	332	390	448	505
t	16	16	16	18	18	20	22	22	24	28	30	34	36	40	44	48
n-φ	4-14	4-14	4-14	4-18	4-18	4-18	8-18	8-18	8-23	8-25	8-25	12-25	12-30	16-30	16-34	16-34
weight（KG）	3.5	4.5	5.5	8	11.5	15	21	30	42.5	57	91	150	220	300	550	-
