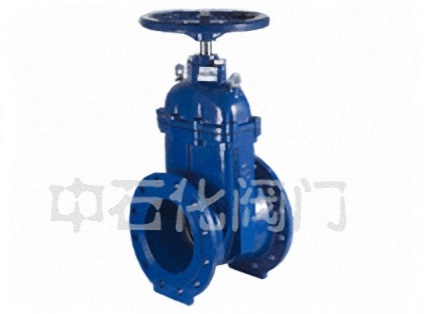

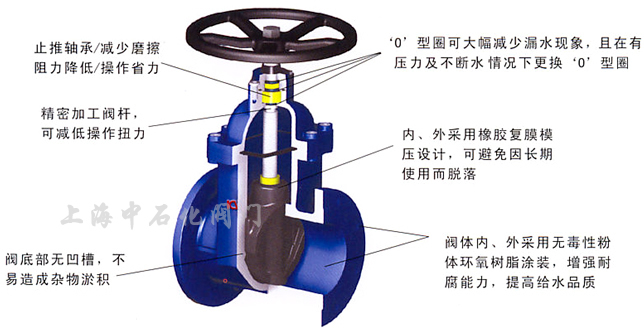

Elastic seat eccentric plug valve imported European high-tech valve technology production, must use the gate as a whole package from the glue elastic deformation compensation function to achieve a good seal, valve seal to overcome the generally poor, Water Leakage and rusty phenomenon, can be widely used in tap water, sewage water, fluid pipeline construction, petroleum, food and medicine, textile, electric power, shipbuilding, metallurgy, energy system as a regulator and closure devices.
Note: parameters are for reference only, or are not full. Valve can be used in accordance with the requirements of different pressure, material, diameter, drive, etc.. Specific please contact or online advisory contact.

The valve body, valve cover, gland	Cock	valve seat	Bearing	V-ring
Nodular graphite cast iron	Ductile iron outsourcing NBR or EPOM	Pure nickel, stainless steel or special materials	Bronze or Brass	NBR

Nominal diameter DN:50~800mm
Nominal pressure PN:1.0MPa
Operating temperature: 0~70
Strength test pressure: 1.5MPa
Seal test pressure: 1.1MPa
Applicable medium: sewage, raw water, water, air, oil (MBR)
Driving mode: handle type, driving cap type, electric, pneu

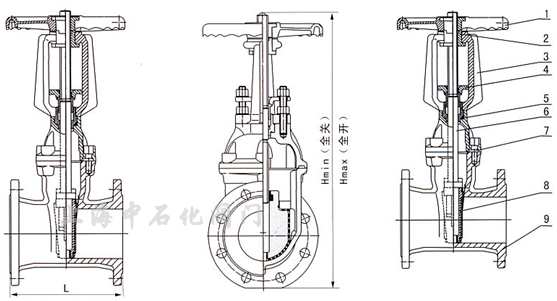

DN	50	65	80	100	125	150	200	250	300	350	400
L	178	190	203	229	254	267	292	330	356	381	406
Hmin（Fully closed）	322	332	350	420	581	581	736	882	1009	1300	1380
Hmax（Open）	374	398	429	524	721	736	942	1013	1117	1655	1805
