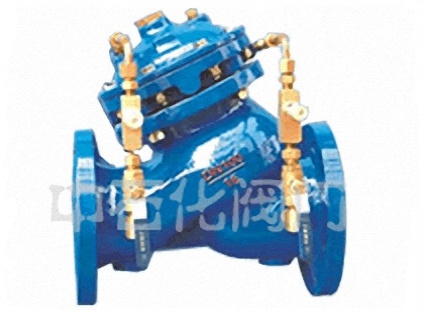

hammer. Diaphragm type multifunctional pump control valve, multifunctional pump control valve, diaphragm type control valve. The valve has the electric valve, check valve and water hammer eliminator three functions, which can effectively improve the safety and reliability of water supply system. And will be slow, slow, slow closing the elimination of water hammer technology integration, to prevent the pump water hammer and stop pumping water hammer. Just press button start operating the pump motor, the valve can automatically according to the pump operating procedures open and close, large flow, low pressure loss. Diaphragm type suitable for T600 caliber valve.
Note: parameters are for reference only, or are not full. Valve can be used in accordance with the requirements of different pressure, material, diameter, drive, etc.. Specific please contact or online advisory contact.
Sealing ring O ring itrile rubber
The stem Cr13
Spring 50crva
Cylinder piston (piston type) Cr13/ stainless steel
Diaphragm (diaphragm type) lip fabric nitrile rubber
Regulating valve ball valve opper alloy / stainless steel
Filter 04 stainless steel
