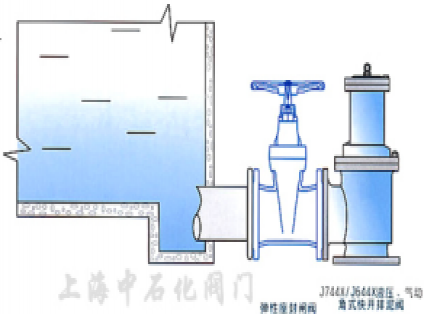

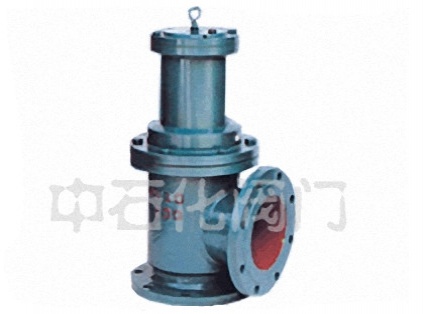

J744X/J644X hydraulic, pneumatic angle type quick opening mud valve, is a hydraulic source or pneumatic source for the implementation of the angle of the valve actuator. The outer wall is arranged at the bottom of the sedimentation tank, and is used for the removal of the sludge and the dirt from the bottom of the pool. The valve hydraulic cylinder piston for the L - shaped leather bowl, sealing performance is good, durable, the valve seal is also a rubber seal, no leakage. Can also be achieved through the four - position two - way solenoid valve to achieve remote control. Easy to operate, safe and reliable. Hydraulic angle type quick opening mud valve, pneumatic angle type quick open mud valve, angle type quick open mud valve.
Note: parameters are for reference only, or are not full. Valve can

Part name	Month body, month cover	Diaphragm pressure plate, valve plate	The stem	diaphragm
Material Science	Cast iron, ductile iron, carbon steel	Ductile iron and bronze	Don't melt steel	Nylon reinforced rubber

Nominal pressure 0 6MPa, 1 0MPa
Nominal diameter: 100 ~ 400mm
Minimum horse driving pressure: 0.15MPa
Applicable medium: water, sewage
Driving medium: water, gas
Applicable temperature: 0 ~ 80
Flange standard: GB / L T 72416 GB / T 9113
Test standard: T / L GB 3927 APl 598

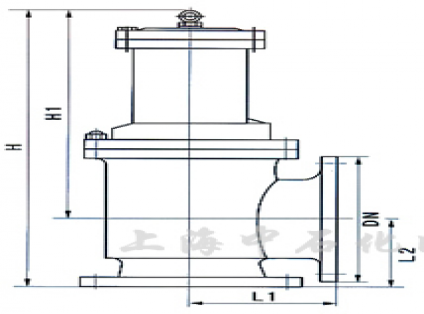

DN	80	100	150	200	250	300	350	400
H	480	500	620	735	805	940	1100	1200
L1	135	145	175	225	260	280	305	340
L2	125	125	145	185	205	245	270	310
