Used for steam main line, cylinder, heat exchanger, curing machine, hot air dryer, cylinder dryer, distiller, concentrator, hospital sterilizer, etc. The super small, light weight Es5 is suitable for air conditioning, washing machine, sound dyeing machine, etc. All stainless steel Esu5 is designed for the food industry, hospital steam equipment manufacturing.
Instructions for ordering:
1. If there is no selected model, please provide detailed parameters, such as medium, temperature, pressure, caliber, material, etc., and our technicians will select the model for you
Ii. If the selected model is available, please provide it according to the selected model
Non-standard products shall be provided with samples or confirmed by drawings
Note: the information is for reference only, or may not be complete, so we apologize for any inconvenience caused to you. The company can be selected according to different requirements and parameters. The company has a variety of sizes caliber, pressure, different materials, connection mode, drive mode, to meet different needs of the trap. Please contact 021-6651 8677 or consult online.

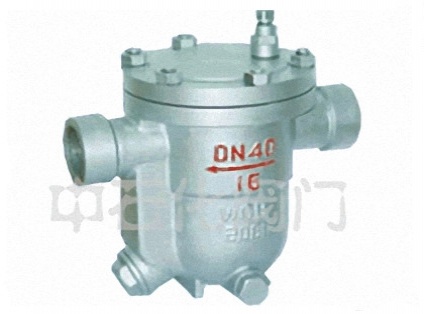

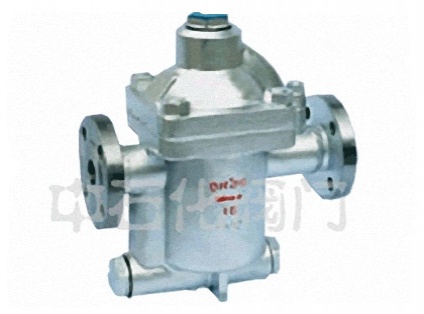

SCCV closing mode and double seat differential pressure mechanical installation in the same unit long life, when the volume of condensation increases, the bucket loses buoyancy, mechanical reverse seal pressure difference, the main valve opened to obtain a large displacement, the use of steam equipment to start quickly, give play to the thermal efficiency of the machine.
|
Product model
|
Nominal diameter
DN
|
Connection mode
|
Use pressure range
(Mpa)
|
allowable temperature℃
|
body material
|
Outline dimension（mm）
|
|
|
|
|
|
|
|
L
|
H1
|
H2
|
W
|
|
ES5
(CS15H-3·7·11·16)
|
15
20
25
|
Internal screw thread
ZG1/2“-1”
|
0.01~0.3·0.7·1.1·1.6
|
350
|
ZG1Cr18Ni89Ti
|
138
|
72
|
94
|
103
|
|
WSH5
(CS15H-3·7·11·16P)
|
15
20
25
|
Internal screw thread
ZG1/2“~1”
|
0.01~0.3·0.7·1.1·1.6·2.1
|
350
|
ZG1Cr18Ni89Ti
|
138
|
72
|
94
|
103
|
|
WSH5F
(CS45H-3·7·11·16P)
|
15
20
25
|
flange
|
0.01~0.3·0.7·1.1·1.6·2.1
|
350
|
WCB
|
210
|
72
|
94
|
103
|
|
ES8B
(CS15H-5·8·16)
|
15
20
25
|
Internal screw thread
ZG1/2“~1”
|
0.01~0.5·0.8·1.6
|
220
|
WCB
|
138
|
72
|
94
|
103
|
|
ES8N
(CS15H-5·8·16)
|
15
20
25
|
Internal screw thread
ZG1/2“~1”
|
0.01~0.5·0.8·1.6
|
220
|
WCB
|
138
|
72
|
94
|
103
|
|
ES8BF
(CS45H-5·8·16)
|
15
20
25
|
flange
|
0.01~0.5·0.8·1.6
|
220
|
WCB
|
210
|
72
|
94
|
103
|
|
ES8NF
(CS45H-5·8·16)
|
15
20
25
|
flange
|
0.01~0.5·0.8·1.6
|
220
|
WCB
|
210
|
72
|
94
|
103
|
|
ES10
(CS15H-8·12·16)
|
20~40
|
Internal screw thread
ZG1/2“~1”
|
0.01~0.8·1.2·1.6
|
220
|
WCB
|
200
|
93
|
132
|
142
|
|
ES10F
(CS45H-8·12·16)
|
15~25
32~50
|
flange
|
0.01~0.8·1.2·1.6
|
220
|
WCB
|
270
|
93
|
132
|
142
|
|
ES12N
(CS45H-16)
|
15~25
32~50
|
flange
|
0.01~1.6
|
200
|
WCB
|
280
|
93
|
132
|
142
|
1, the occurrence of condensation water adaptability is strong, can be intermittent discharge.
2, unparalleled SCCV off system, unique design, with the compensation of the error caused by mechanical machinery, to avoid the closure of the steel collision.
3, the internal parts are made of stainless steel, and installed in the valve cover, maintenance is very convenient.
4, high back pressure rate. (90%).
5, reliable separation of steam and water (water vapor enters from the valve through the bottom U-shaped channel), remain the state of water sealing valve, effectively prevent leakage of steam.
6, my mouth shaped float resists water hammer. The bucket is provided with overflow vent. Can effectively prevent vapor lock, air blocking phenomenon. (non condensing of high temperature air can also be excluded).
