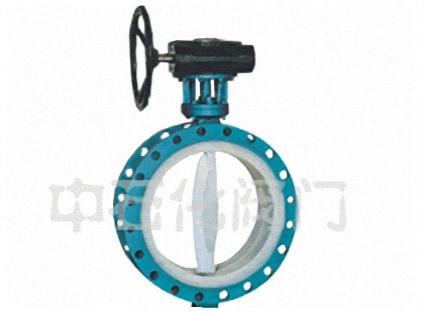

Home > Products > Butterfly valve > Flange fluorine turbine butterfly valve

Description Material Performance Product Size Specifications

Apart from the butterfly valve in the pipeline and the closure by cutting, in recent years has been the sealing performance as the main evaluation index, favored by the market. In addition, the butterfly still has the advantages of small size, light weight and simple structure advantages, compared with the same parameters valve, the average weight of 30-50%, the butterfly plate rotating 90 degrees can be realized the opening and closing process, because the media is approximately equal to the force, shaft on both sides of the disc by the torque on the contrary, the smaller opening and closing torque.

Serial numberNO	Part nameName	Gray cast iron	cast steel	Stainless steel		Ultra low carbon stainless steel
Serial numberNO	Part nameName	Z	C	P	R	PL	RL
1	valve body	HT250	WCB	CF8	CF8M	CF3	CF3M
2	valve body	1Cr13	2Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti	00Cr18Ni10	00Cr17Ni14Mo2
3	Lining / seat	PCTFE(F3) FEP(F46) PFA (Soluble PTFE)
4	The butterfly plate / packing gland	WCB	WCB	CF8	CF8M	CF3	CF3M
5	Bracket	WCB(carbon steel)		CF8(Stainless steel)
6	filler	PTFE (F4)		PTFE (F4)		PTFE (F4)
7	Butterfly bolt	35	35	1Cr17Ni2	1Cr17Ni2	1Cr18Ni9	1Cr18Ni9
8	Nut	45	45	0Cr18Ni9	0Cr18Ni9	0Cr18Ni9	0Cr18Ni9

One, the company introduced the fluorine plastic lined butterfly valve series
There are two kinds of 1 basic types, namely D71F4 and D71F46 (middle) and D71F4 and D71F46 (eccentric) full lining butterfly clip on type two, using the bisection valve combination, the valve seat and valve liner valve work, integration, only full plastic seat and lining plastic disc contact with the media, the product can withstand "in addition to any corrosion of molten alkali and fluorine elements", which is also D71F4 stem disc (forging) as a whole, the surface evenly coated with a layer of FEP. in the channel of the valve body surface smooth, fluid resistance, high CV value, strong circulation, moderate torque, the four seal structure and the seal surface. With high temperature aging elastic rubber gasket seat SI, zero leakage of the medium.
2 the above model is extended to the D71F and D41F type flange connection valve full lining, butterfly plate for stainless steel lined butterfly valve.
3.D343F type flange connection double eccentric full lining butterfly valve.
Two, structural characteristics

Nominal diameter		standard value							reference value
DN (mm)	NPS (inch)	L	D	D1	D2	f	b	Z-φd	D0	H	W(kg)
DN (mm)	NPS (inch)	PN0.6(MPa)
40	11/2	106	130	100	80	3	16	4-φ14	160	140	10
50	2	108	140	110	90	3	16	4-φ14	200	160	12
65	21/2	112	160	130	110	3	16	4-φ14	250	160	13
80	3	114	185	150	125	3	18	4-φ18	250	170	14
100	4	127	205	170	145	3	18	4-φ18	300	180	16
125	5	140	235	200	175	3	20	8-φ18	300	275	18
150	6	140	260	225	200	3	20	8-φ18	200	295	38
200	8	152	315	280	255	3	22	8-φ18	200	320	74
250	10	250	470	335	310	3	24	12-φ18	240	385	105
300	12	270	435	375	362	4	24	12-φ23	240	390	142
350	14	290	485	445	412	4	26	16-φ25	240	460	179
400	16	310	535	495	462	4	28	16-φ23	280	510	220
450	18	330	590	550	518	4	28	16-φ23	280	540	268
500	20	350	640	600	568	4	30	16-φ23	320	570	378
600	24	390	755	705	670	5	30	20-φ25	320	660	608
700	28	430	860	810	775	5	32	24-φ25	360	710	1050
800	32	470	975	920	880	5	34	24-φ30	360	780	1320
900	36	510	1075	1020	980	5	36	24-φ30	380	885	1795
1000	40	550	1175	1120	1080	5	36	28-φ30	400	990	1900

Nominal diameter		standard value							reference value
DN (mm)	NPS (inch)	L	D	D1	D2	f	b	Z-φd	D0	H	W(kg)
DN (mm)	NPS (inch)	PN0.6(MPa)
40	11/2	106	145	110	85	3	18	4-φ18	160	140	10
50	2	108	160	125	100	3	20	4-φ18	200	160	12
65	21/2	112	180	145	120	3	20	4-φ18	250	160	13
80	3	114	195	160	135	3	22	4-φ18	250	170	14
100	4	127	215	180	155	3	22	8-φ18	300	180	16
125	5	140	245	210	185	3	24	8-φ18	300	275	18
150	6	140	280	240	210	3	24	8-φ23	200	295	38
200	8	152	335	295	265	3	26	8-φ23	200	320	74
250	10	250	390	350	320	3	28	12-φ23	240	385	105
300	12	270	440	400	368	4	28	12-φ23	240	390	142
350	14	290	500	460	428	4	30	16-φ23	280	460	179
400	16	310	565	515	482	4	32	16-φ25	280	510	220
450	18	330	615	565	532	4	32	20-φ25	320	540	268
500	20	350	670	620	585	4	34	20-φ30	320	570	378
600	24	390	780	725	685	5	36	20-φ30	360	660	608
700	28	430	895	840	800	5	40	24-φ30	360	710	1050
800	32	470	1010	950	905	5	44	24-φ30	360	780	1320
900	36	510	1110	1050	1005	5	46	28-φ34	380	885	1795
1000	40	550	1220	1160	1115	5	50	28-φ34	400	990	1900

Nominal diameter		standard value							reference value
DN (mm)	NPS (inch)	L	D	D1	D2	f	b	Z-φd	D0	H	W(kg)
DN (mm)	NPS (inch)	PN1.6(MPa)
40	11/2	106	145	110	85	3	18	4-φ18	160	140	10
50	2	108	160	125	100	3	20	4-φ18	200	160	12
65	21/2	112	180	145	120	3	20	4-φ18	250	160	13
80	3	114	195	160	135	3	22	8-φ18	260	170	14
100	4	127	215	180	155	3	24	8-φ18	300	180	16
125	5	140	245	210	185	3	26	8-φ18	300	275	18
150	6	140	280	240	210	3	28	8-φ23	200	295	42
200	8	152	335	295	265	3	30	12-φ23	200	320	78
250	10	250	405	355	320	3	32	12-φ25	240	385	120
300	12	270	460	410	375	4	34	12-φ25	240	390	145
350	14	290	520	470	435	4	38	16-φ25	240	460	202
400	16	310	580	525	485	4	40	16-φ30	280	510	235
450	18	330	640	585	545	4	44	20-φ30	280	540	368
500	20	350	705	650	608	4	46	20-φ34	320	570	420
600	24	390	755	770	718	5	54	24-φ41	320	660	750
700	28	430	840	840	788	5	54	24-φ41	360	710	1028
800	32	470	910	950	898	5	54	24-φ41	380	780	1690
900	36	510	1120	1050	998	5	54	28-φ41	400	885	1815
1000	40	550	1255	1170	1110	5	60	28-φ48	500	990	2050

Nominal diameter		standard value							reference value
DN (mm)	NPS (inch)	L	D	D1	D2	f	b	Z-φd	D0	H	W(kg)
DN (mm)	NPS (inch)	PN2.5(MPa)
40	11/2	106	145	110	85	3	18	4-φ18	200	140	11
50	2	108	160	125	100	3	20	4-φ18	200	160	13
65	21/2	112	180	145	120	3	22	8-φ18	250	160	14
80	3	114	195	160	135	3	22	8-φ18	250	170	16
100	4	127	215	180	155	3	24	8-φ23	300	180	18
125	5	140	245	210	185	3	28	8-φ25	300	275	20
150	6	140	280	240	210	3	30	8-φ25	240	295	48
200	8	152	335	295	265	3	34	12-φ25	240	320	88
250	10	250	405	355	320	3	36	12-φ30	280	385	145
300	12	270	460	410	375	4	40	16-φ30	280	390	157
350	14	290	520	470	435	4	44	16-φ34	320	460	222
400	16	310	580	525	485	4	48	16-φ34	320	510	353
450	18	330	640	585	545	4	50	20-φ34	360	540	405
500	20	350	705	650	608	4	52	20-φ41	360	570	448
600	24	390	840	770	718	5	56	24-φ41	380	660	795

Follow the norms	STANDARD
Design and manufacture Design	GB 12238
Structure length Face to face	GB 12221 (Short a long series)
Flange size End flange	JB78/JB79 (GB.HG.SH)
Pressure test Test	GB/T 13927
sign Symbol	GB 12220
Supply commodity Supply	GB/T 12252
