Home > Products > Globe valve > Fluorine lined globe valveJ41F46

Description Material Performance Product Size Specifications

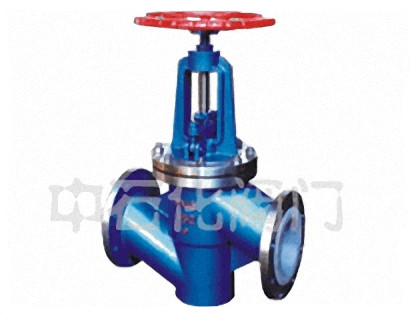

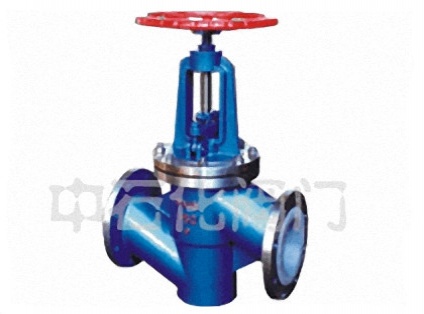

Globe valve is a valve which is closed by the valve stem and moves along the center axis of the valve seat, which is mainly used to connect or cut off the medium in the pipeline, but can not be used for throttling.

Order note:
If there is no selected model, please provide detailed parameters, such as medium, temperature, pressure, caliber, material and so on. Our technicians will select for you
Two. Provided that the selected model is available according to the selected model
Three, non standard products need to provide samples or confirmed by drawings
Note: the information is for reference only, or incomplete, so please feel sorry for the inconvenience. The company can choose according to different requirements and parameters. The company has a variety of sizes, pressure, different materials, connections, drive mode, to meet the different needs of various types of gate valve. Please contact 021-6651 8677 or consult online.

Serial number	Part name	Gray cast iron	cast steel	Stainless steel		Ultra low carbon stainless steel
		Z	C	P	R	PL	RL
1	Valve body, valve cover	HT250	WCB	CF8	CF8M	CF3	CF3M
2	Valve stem	35	1Cr13	1Cr18NI9	1Cr18Ni12Mo2Ti	00Cr18Ni10	00Cr17Ni14Mo2
3	Live bolt	35	35	1Cr17Ni2	1Cr17Ni2	1Cr17Ni2	1Cr17Ni2
4	Lining / seat	Rubber lining（NR）FEP（F46） PCTFE（F3）PFA（Soluble PTFE）
5	filler	PTFE（F4） PTFE（F4）
6	Packing gland	WCB	WCB	CF8	CF8M	CF3	CF3M
7	Stem nut	ZCuAl10Fe3 ZCuAl10Fe3
8	Bolt	35	35	1Cr17Ni2	1Cr17Ni2	1Cr17Ni9Ti	1Cr17Ni9Ti
9	Nut	45	45	0Cr18Ni9	0Cr18Ni9	0Cr18Ni9	0Cr18Ni9
10	handwheel	HT200	HT200	WCC	WCC	WCC	WCC

No Information

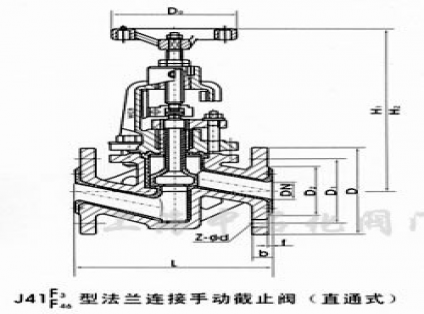

Nominal diameter		standard value							reference value
DN (mm)	NPS (inch)	L	D	D1	D2	f	b	Z-φd	W	D0	H	WT(Kg)
		PN 1.0MPa
15	1/2	130	95	65	45	2	14	4-φ14	100	235	260	6.5
20	3/4	150	105	75	55	2	16	4-φ14	100	240	265	7
25	1	160	115	85	65	2	16	4-φ14	120	245	270	7.87
32	11/4	180	135	100	78	2	18	4-φ18	140	255	285	11
40	11/2	200	145	110	85	3	18	4-φ18	140	285	315	13
50	2	230	160	125	100	3	20	4-φ18	160	295	330	15
65	21/2	290	180	145	120	3	20	4-φ18	180	350	395	23
80	3	310	195	160	135	3	22	4-φ18	240	395	445	38
100	4	350	215	180	155	3	22	8-φ18	240	450	490	42
125	5	400	245	210	185	3	24	8-φ18	280	525	555	55
150	6	480	280	240	210	3	24	8-φ23	320	605	645	77
200	8	495	335	295	265	3	26	8-φ23	360	645	765	135
250	10	622	390	350	320	3	28	12-φ23	400	685	805	220
300	12	698	440	400	368	4	28	12-φ23	400	710	814	277
350	14	787	500	460	428	4	30	16-φ23	450	750	855	320
PN 1.6MPa
15	1/2	130	95	65	45	2	14	4-φ14	100	240	265	7
20	3/4	150	105	75	55	2	16	4-φ14	100	245	270	7.6
25	1	160	115	85	65	2	16	4-φ14	120	250	270	8.2
32	11/4	180	135	100	78	2	18	4-φ18	140	260	290	12
40	11/2	200	145	110	85	3	18	4-φ18	140	285	320	14
50	2	230	160	125	100	3	20	4-φ18	160	300	335	18
65	21/2	290	180	145	120	3	20	4-φ18	180	355	400	26
80	3	310	195	160	135	3	22	8-φ18	240	400	450	40
100	4	350	215	180	155	3	24	8-φ18	240	455	495	50
125	5	400	245	210	185	3	26	8-φ18	280	530	560	65
150	6	480	280	240	210	3	28	8-φ23	320	610	650	85
200	8	495	335	295	265	3	30	12-φ23	360	650	770	150
250	10	622	405	355	320	3	32	12-φ25	400	690	810	245
300	12	698	460	410	375	4	34	12-φ25	400	730	845	295
PN 2.5MPa
15	1/2	130	95	65	45	2	16	4-φ14	120	240	265	7.5
20	3/4	150	105	75	55	2	16	4-φ14	120	245	270	8
25	1	160	115	85	65	2	16	4-φ14	140	250	275	9
32	11/4	180	135	100	78	2	18	4-φ18	160	260	290	13
40	11/2	200	145	110	85	3	18	4-φ18	180	285	320	15
50	2	230	160	125	100	3	20	4-φ18	180	300	335	20
65	21/2	290	180	145	120	3	22	8-φ18	240	355	400	28
80	3	310	195	160	135	3	22	8-φ18	280	400	450	42
100	4	350	230	190	160	3	24	8-φ23	320	455	495	57
125	5	400	270	220	188	3	28	8-φ25	320	530	560	71
150	6	480	300	250	218	3	30	8-φ25	360	610	650	90

Manual	J41J J41FS	gear drive	J441J J441FS
Manual	J45J J45FS	gear drive	J541J J541FS
Pneumatic	J6B41J J6B41FS	Electric	J941J J94FS

Follow the norms	STANDARD
Design in manufacturing	GB 12233/GB 12235
Structure length	GB 12221（Long short series）
Flange size	JB 78/JB 79（GB，HG，SH）
Pressure test	GB/T 13927
sign	GB 12220
Supply commodity	GB/T 12252
